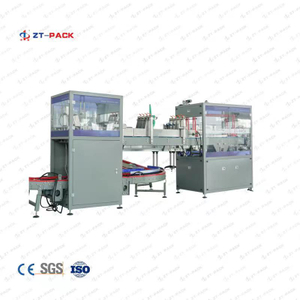

Automatic Carton Erector

Reasonable design, synchronous absorption molding, folding and sealing the bottom of a synchronous molding; Automatic Case Sealer is light in size, precise and durable in performance, vibration-free in operation process, stable in operation, long in life and high in efficiency.
Availability:
Quantity:
  • ZT-PACK

Description:

The automatic case erector opens, forms, and fold cartons, sealing with tape or glue as needed before sending the empty carton to the packing machines. This high speed case opening machine can prepare large quantities of cartons at a time and is easy to operate with a PLC and touch screen.

1.Forming speed

15-18 cases per hour

2.Tape width

4.8-7.2cm (the tape maximum length is 2000 meter)

3.Air pressure

0.6-0.8MPa

4.Case specifications

L 200-450mm, W 150-450mm, H 100-400mm

5.Power source

AC200V, 50Hz

6.Power

1 KW

7.Weight

about 600kg

8.External Dimensions

2100*2050*1500(L*W*H)mm
