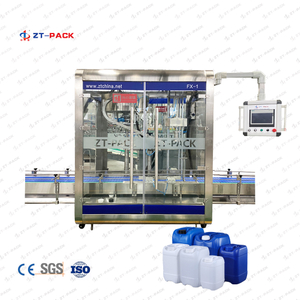

4L-30L Lubricant Oil Filling Machine Packing Line

Suitable For Oils Filling with High Accuracy 0.2%.
Have Different System Can Be Choosen: Flow Meter / Net Weight
Suitable for fill : Lubricant Oil / Car Oil / Motor Oil / coolant liquid / engine oil / Lubricanting Oil kinds Products
Filling Range :  4L -20L
Speed can be choosen : from 200-400 drums/ hour (Based on 20L)
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • ZT-PACK

5-30L Drum line (2)


Machine Name :

                           4L-30L Lubricant Oil Filling Machine Packing Line



Suitable for fill : Lubricant Oil / Car Oil / Motor Oil / coolant liquid / Engine oil / Lubricanting Oil kinds Products


with filler -- capper -- induction sealer -- label sticker -- palletilizer


Automatic Feeding from storage to filling machine tank



Filling Range : 4L-30L


Filling System can be choosen : Net Weight / Flow Meter


Accuracy :  0.1 % ( Net weight system )

                   0.5% ( Flow Meter system)



Speed can be choosen : from 200BPH-600BPH (basic on 20L )


Machines included (can be choosen):  Filling Machine--Capping Machine -- Induction sealing machine -- Aluminum Foil detector and rejector --Labeling Machine --Date Printer -- Palletilizer



Capacity Speed For Choosing :


4L-30L data


Suitable for :

Lubricating oil (antifreeze, lubricating oil, brake oil, Motor Car Oil, Coolant water etc.)


Layout Drawing :


5-30L


Machine Description:

Net weigh fillers are in ideal solution for ensuring each container you fill has the same amount of product in it. They are the best for liquids filled in bulk quantities, such as 5-gallon oil , or products that have a very high value and thus need to be weighed correctly to avoid losing profit.

This is weigh type filling machine for filling 5-30 KG Liquid .
Gravity filling system with weight scale under filling nozzle to assure filling accuracy.

As well as pressure tank be used to make sure the capacity speed faster.

Linear type machine, can be made with 4/6 filling nozzle for different filling capacity.

It is ideal for filling big volume product like edible oil, wine, lubrication, liquid fertilizer, chemicals etc.
Net weight filler is best suited for liquids to be filled in bulk quantities e.g. 5 gallon pails, etc. or smaller quantity
products that have a very high manufactured value. Oftentimes there are products that must be sold by weight for commercial reasons and therefore this filling machine is the only choice. Examples of this type of filler for bulk products include cleaning chemicals, enzyme solutions, oils and other medium value products. High value products filled by these machines include specialty adhesives and paints, precious metals dissolved in acids, and other expensive specialty chemicals.
The operation of this type of net weight drum filling machine is simple. The product bulk supply is pumped into a holding tank above a pneumatically operated valve. Cleaned containers are conveyed to the filling machine through an SS slat conveyor, positioned on individual load cell platform and tared. the valves open and real time net weight information is monitored until the
target weight is achieved. The valve simply shuts when the target weight is achieved. Accuracy of fills is accomplished by various “bulk and dribble” methods in the filling process so that overfills are avoided.
The advantage of this bucket filling machine over others is that it is sometimes the only practical (and legal) type of filling for a limited range of applications and for large volume fills. It is also very accurate and effectively provides its own quality control assuming the scale is functioning properly. The disadvantage of this type of filling machine is that it is very expensive
per filling head. For these reasons, the use of this filling technology is limited to the examples outlined above.


Suitable for Fill :


b9f73f01c8fac0da1b84630e0b65eb4


Main Feature:


  1. This line is suitable for the packaging of oil products such as lubricating oil.

2. The whole line can be operated by 2-3 people, which reduces labor intensity and labor cost.

3. The filling speed of the whole line is 200-600 bottles/hour, which can be customized according to requirements.

4. The average filling accuracy is ±0.5%, the accuracy is accurate, and unnecessary waste is reduced.

5. The whole line is made of stainless steel, with beautiful appearance and high appearance. Customers can visit it.
