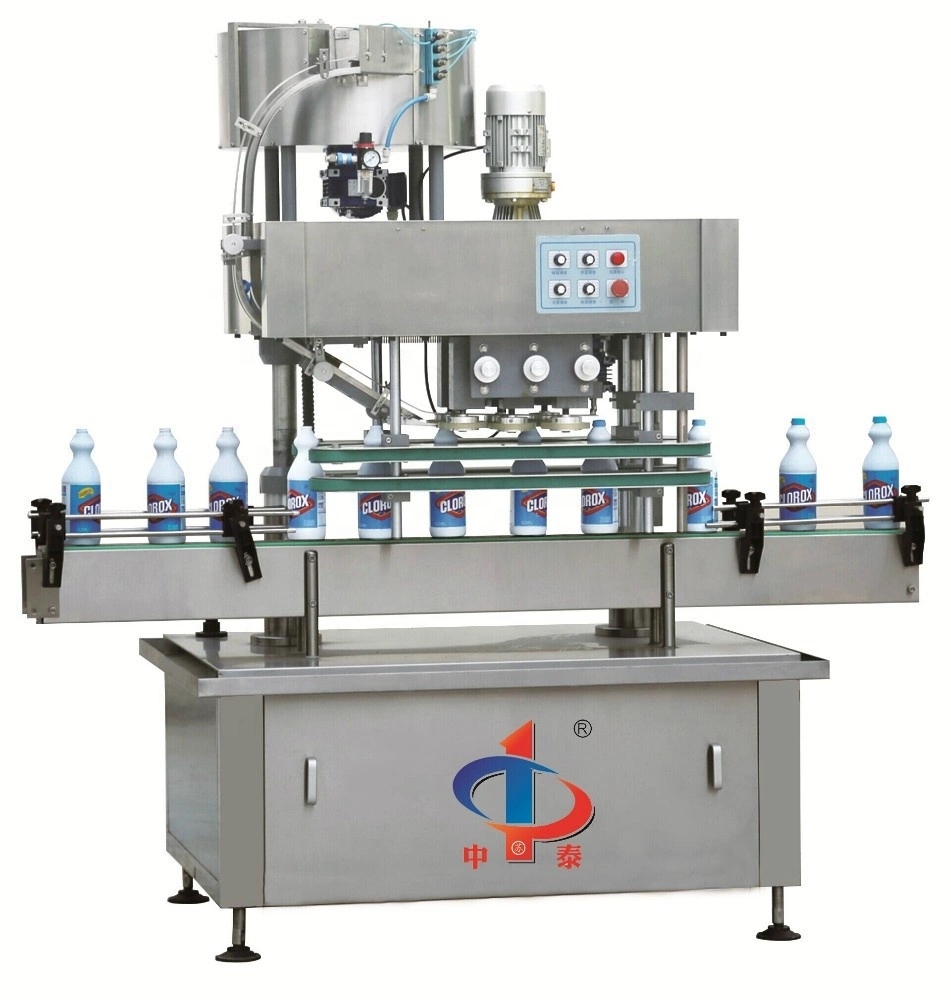

Bleach Acid Corrosive Liquids Filling Machine Packing Line

Automatic Corrosive Liquids Filling Machine Packing Line

Filling range : 100ml -5000ml

                        5L -20L

Suitable for filling :

Acid Bleach products packing

(Bleach ,Acid ,toilet cleaner.. etc.Automatic packaging of corrosive liquids.

Automatically complete bottle unscramble, filling, capping, sealing, labeling, QR code, unpacking, packing, sealing, and palletizing, equipped with an integrated environmental protection cover. It conforms to the standards of safety, environmental protection and intelligent three-levelization, and the production process is automatically coordinated, which is stable and efficient.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • ZT-PACK

bleach line


Name : Bleach Acid Corrosive Liquids Filling Machine Packing Line


Filling range : 50ml -5000ml


Suitable for filling :


Acid Bleach products packing

(Bleach ,Acid ,toilet cleaner.. etc.Automatic packaging of corrosive liquids.


Filling Range : 100ml-5000ml
                          5L-20L

Filling System : Gravity Time Control

Capacity speed : 1000-5000BPH can be choosen

Machine Material : Plastic

Automatic corrosive filler is engineered to withstand harsh liquid and environments.


Each filling machine is built from corrosive resistant plastic material custom to tolerate the corrosive environments and suited to the products they intended for including not only chemical plants producing strong acids, pesticide and bleach but also food plants using brine or sugar solutions in their products. In both cases, even the factory air alone contributes to the accelerated degradation of the machinery.

Empty containers are conveyed to the corrosive liquid filling machinery through an plastic conveyor, The in- gate cylinder opens, out-gate cylinder closes. the inlet sensor detects quantity of bottles.
After set quantity bottles are positioned under filling nozzle, Bottle neck grabbers hold bottle in position.the fill cycle is initiated, After completing the filling operation,the out-gate cylinder withdraws itself from its position and allows the filled bottles to go further on the conveyor for the sealing operations.
To minimize foaming, Diving head is available, nozzles will go upwards slowly from bottom level of bottles towards neck during filling.
No container no filling system arrangement is standard feature of the machine.
The main drive of the machine and conveyor drive consist of AC motor with synchronized variable frequency drive.




Automatically complete bottle unscramble, filling, capping, sealing, labeling, QR code, unpacking, packing, sealing, and palletizing, equipped with an integrated environmental protection cover. It conforms to the standards of safety, environmental protection and intelligent three-levelization, and the production process is automatically coordinated, which is stable and efficient.


ZGP-G



Suitable For Filling :



ZGP-G 1




 Heavy duty plastic construction
 Controls PVC / Polyurethane Contact Parts
 Plastic reservoir
 Acid resistant tabletop chain
 Automatic product level sensing float system
 Safety guarding
 Easily adjustable nozzle height settings accommodate different height containers
 Pneumatic indexing gates (count in, count out)
 Able to output multiple doses per container for large containers
 User friendly PLC controls with touch screen HMI
 Easy clean stainless steel quick connect fittings
 Neck grabbers for containers wtih small opening
 No bottle/No fill
